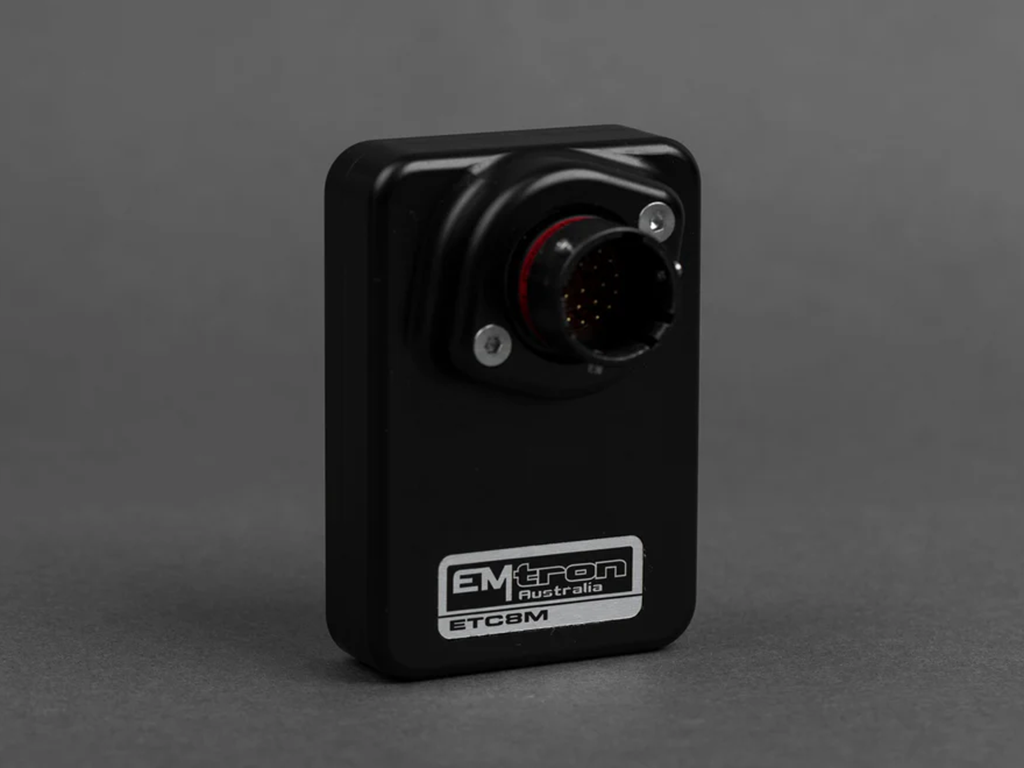

Emtron ETC8M

The ETC8M is a Mil Spec 8 Channel Thermocouple to CAN device using the Motorsport proven Deutsch Autosport connector(Red).

The enclosure is made from billet 6061 aluminium and is water proof to allow for implementation in extreme environments.

• -200 to 1350 DegC
• Sampling rate 500 Hz
• Internal or External Cold Junction Correction
• CAN Baud Rate: 250kBaud, 500kBaud or 1Mbaud Auto Detect
• CAN Transmit Rate Adjustable: 100Hz/200Hz/500 Hz
• 64MHz 16-bit Automotive Processor
• Operating Voltage: 7.0 to 22.0 Volts DC
• Operating Current 50mA at 14.0V
• Reverse Battery Protection
• Battery Transient Protection
• x8 K-Type Thermocouple Inputs.
• Operating Temperature Range: -30 to 85°C (-22 to 185°F)
